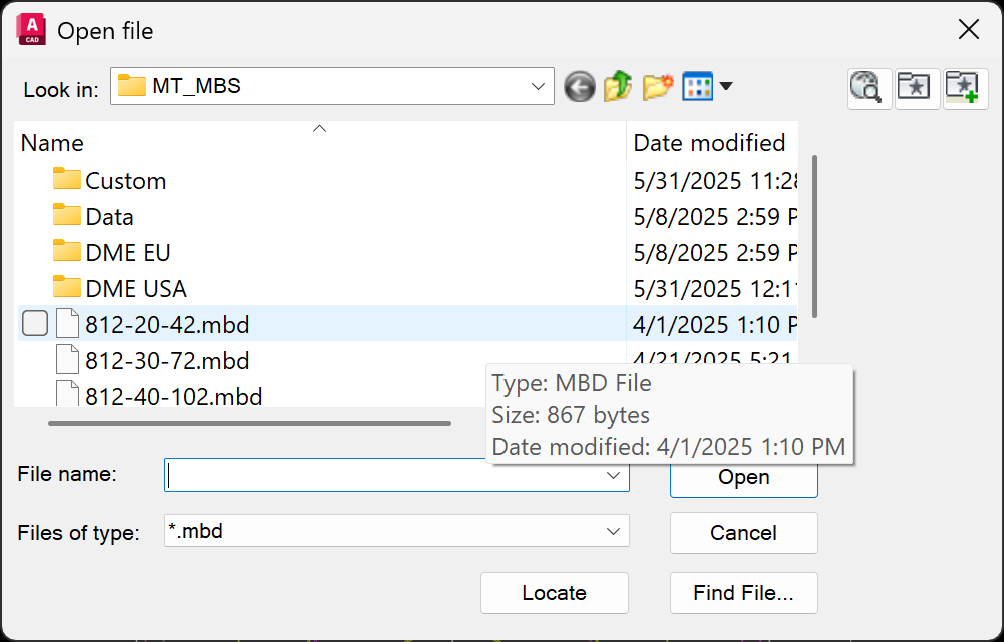

Select mold base to draw



A screenshot of a computer

AI-generated content may be incorrect.

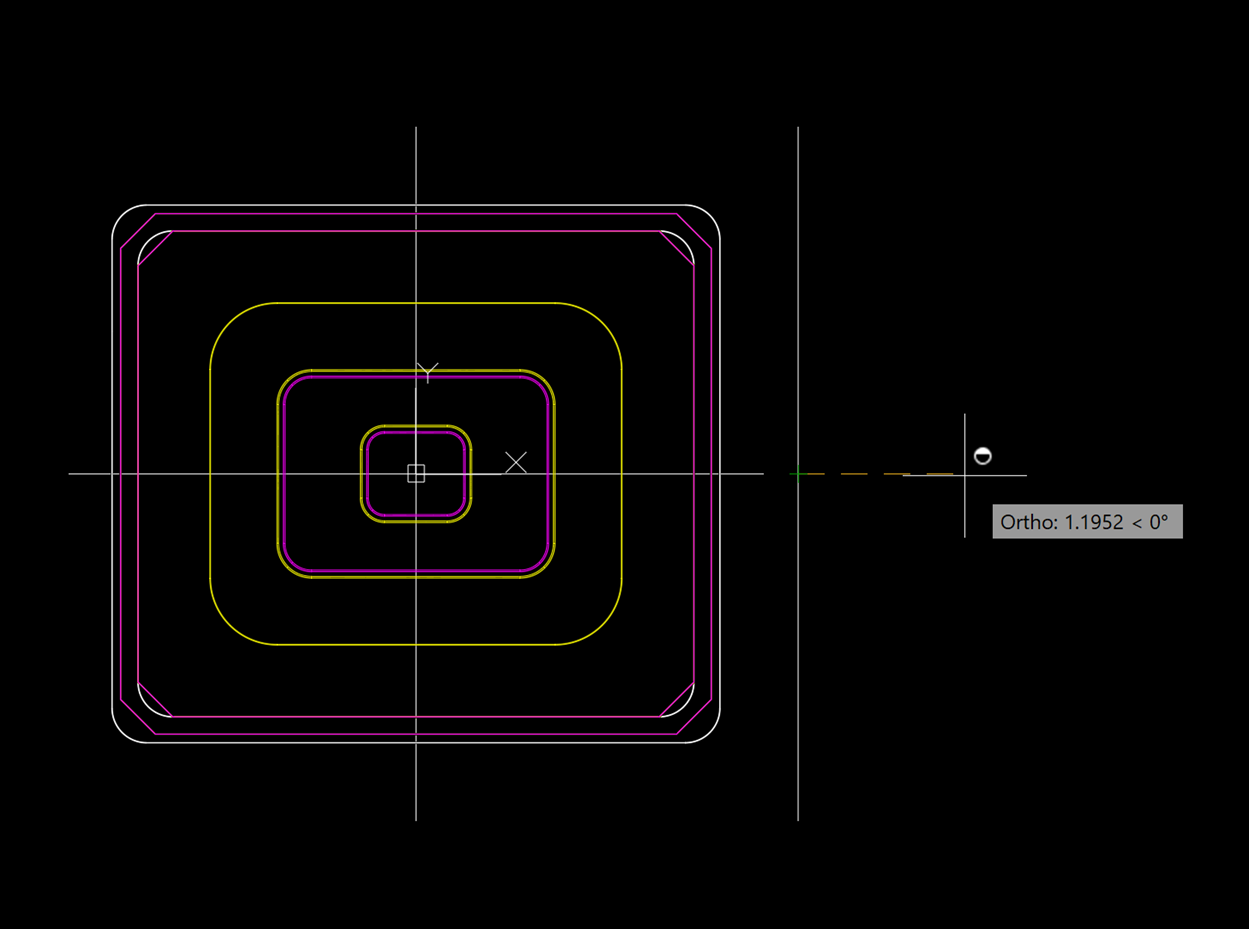

Select insertion point and show the mold length direction



A screenshot of a computer

AI-generated content may be incorrect.

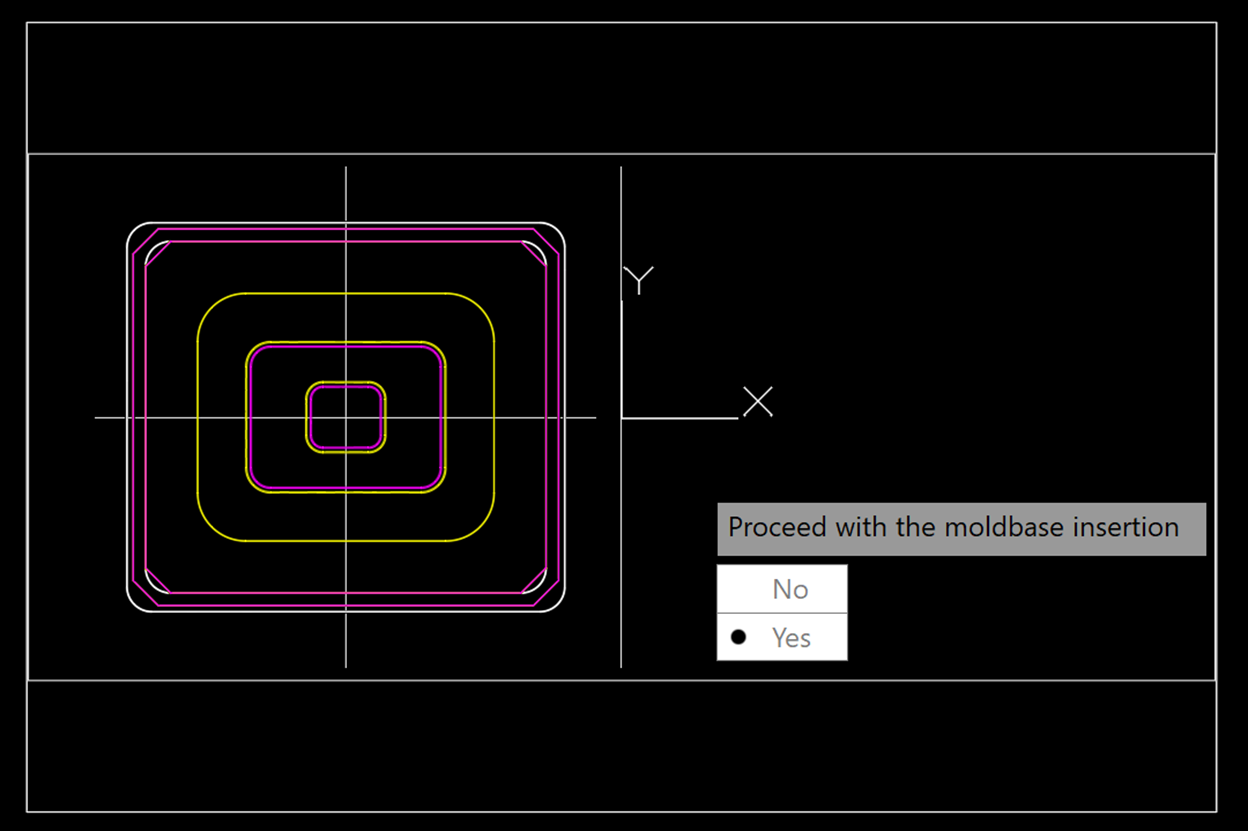

The function will show a preview of the mold base which will allow you to check spacings and will ask if it should proceed with the insertion.



A screenshot of a computer program

AI-generated content may be incorrect.

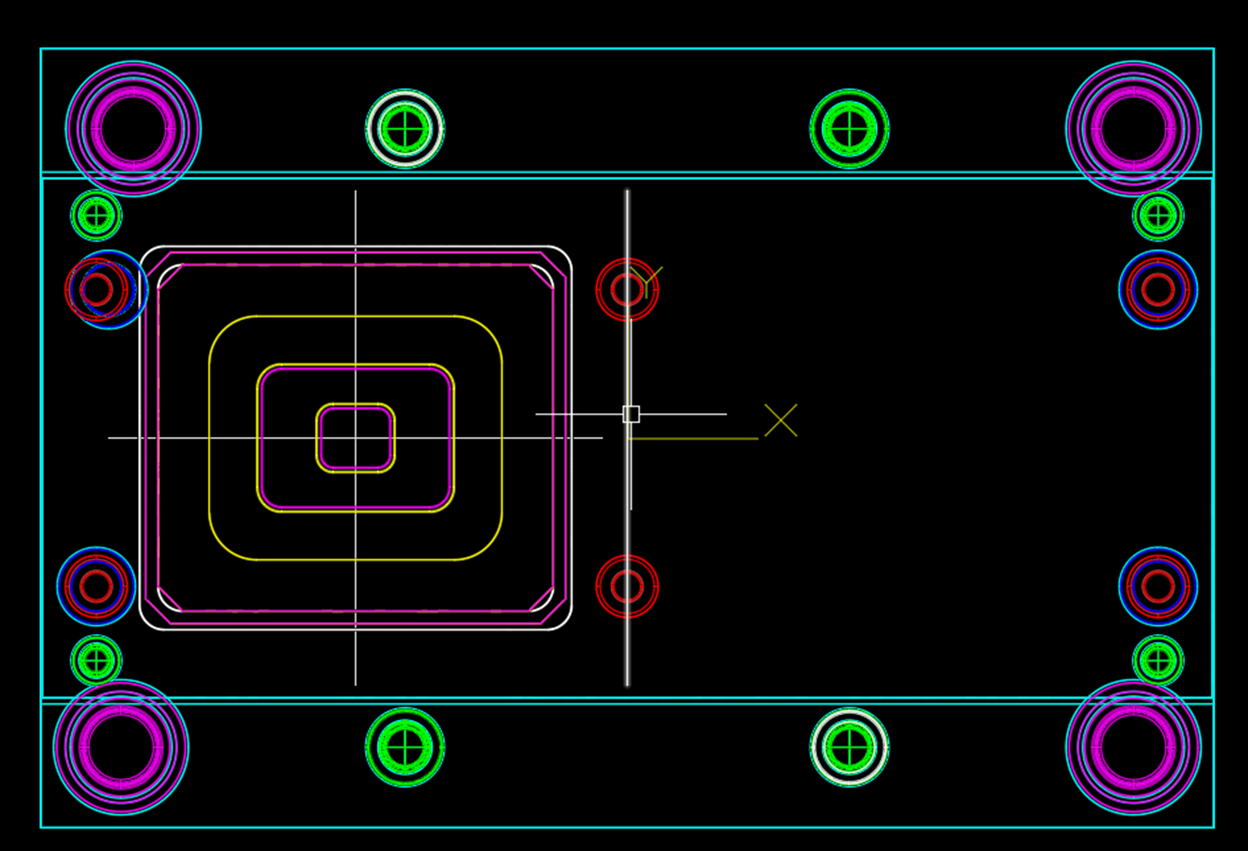

If proceed is selected then the command will draw the mold base, including mold components if any.



A black background with colorful lines and circles

AI-generated content may be incorrect.

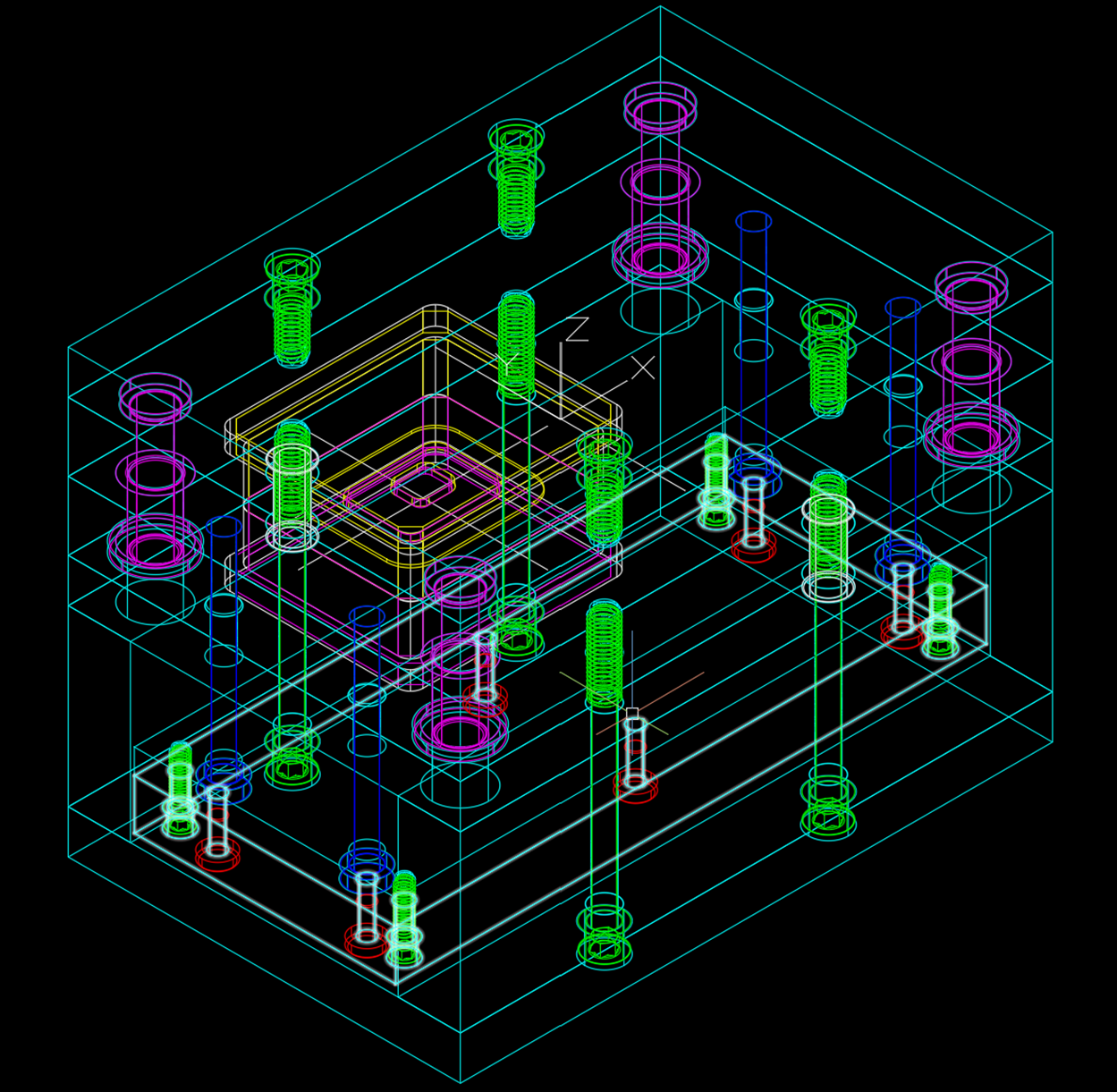

Drawn library mold base with components included
