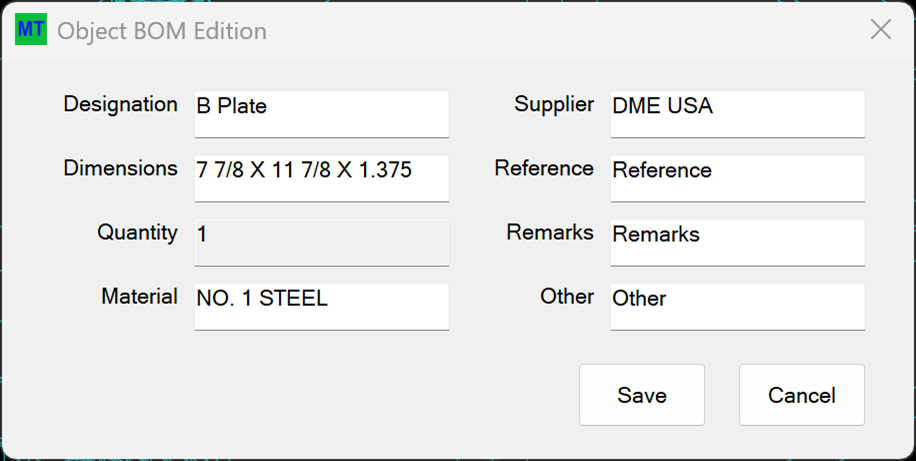

When a mold plate, a component or a registered mold part is selected the dialog box will allow you to edit the data

to show how it will appear on the BOM table.



The function will be also used to register objects that have not been created by MT, as cores or cavities.

When unregistered objects are selected the function will show the option for registration.



A screenshot of a computer

AI-generated content may be incorrect.

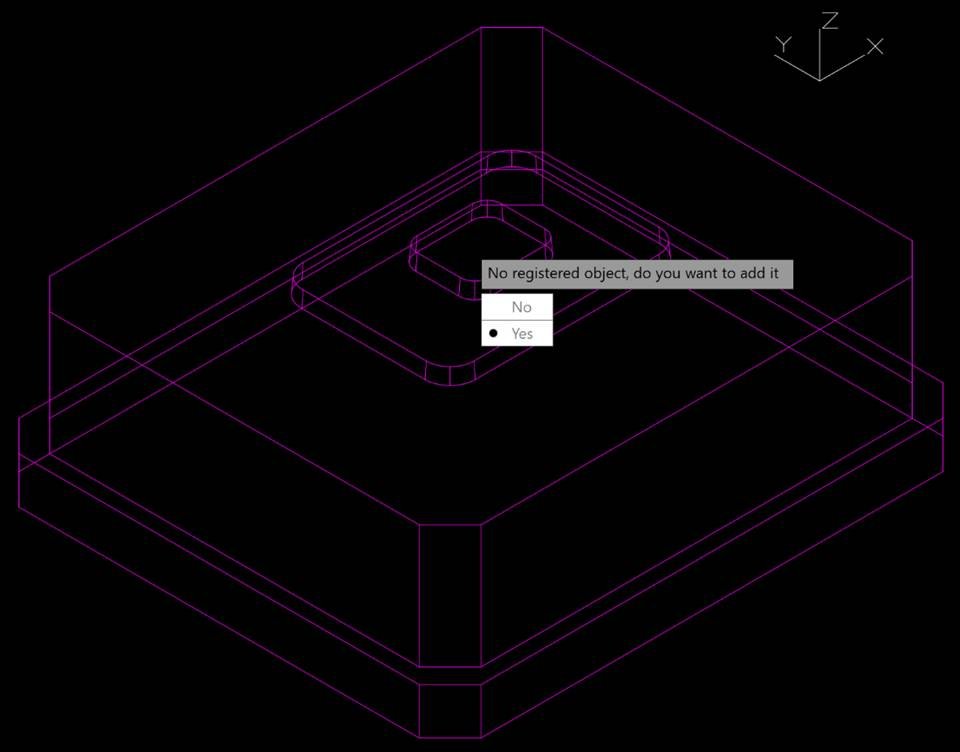

Select option for registration.



A screenshot of a computer

AI-generated content may be incorrect.

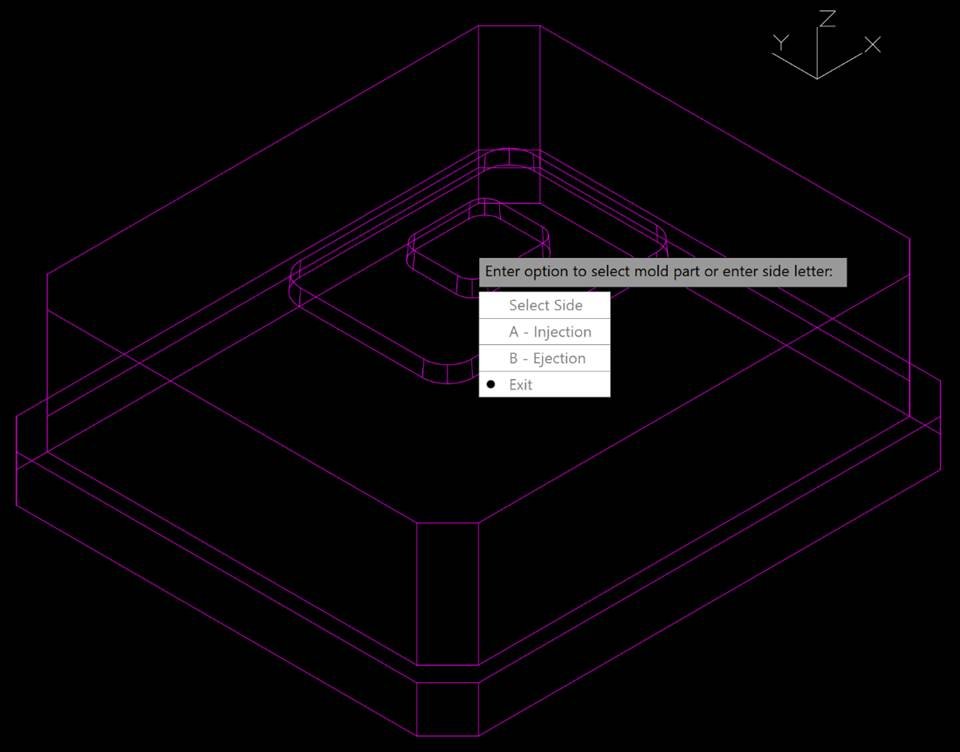

Then select mold part where the object is to be included.



A screenshot of a computer

AI-generated content may be incorrect.

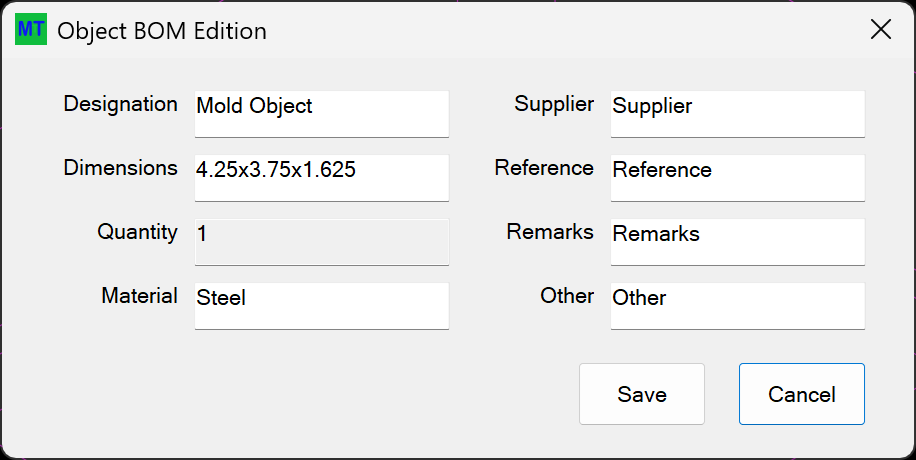

The dialog box will allow you to edit the object information as it will be shown in the BOM table.
