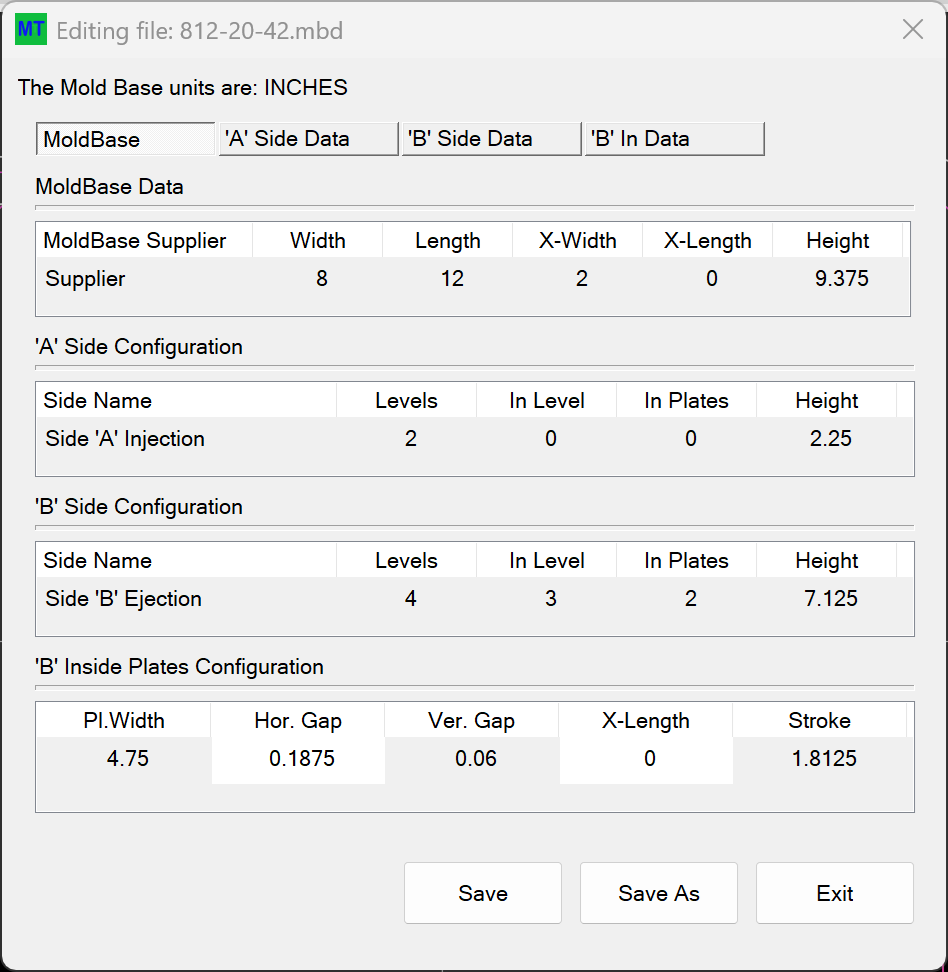

EDIT Mold Base Dialog on CUSTOM Mold Bases

A screenshot of a computer

AI-generated content may be incorrect.

MoldBase Data

Edit cells of this row to configure the mold base data.

Not editable Height cell will show the total height of the mold calculated from data.



Side Configuration

Not editable cells, they show mold ‘A’ and ‘B’ side information.

Inside Plates Configuration

Editable cells to enter data for plates within, defined by letter ‘A’ or ‘B’, housing.

Stroke will show distance calculated from data and it is not editable.

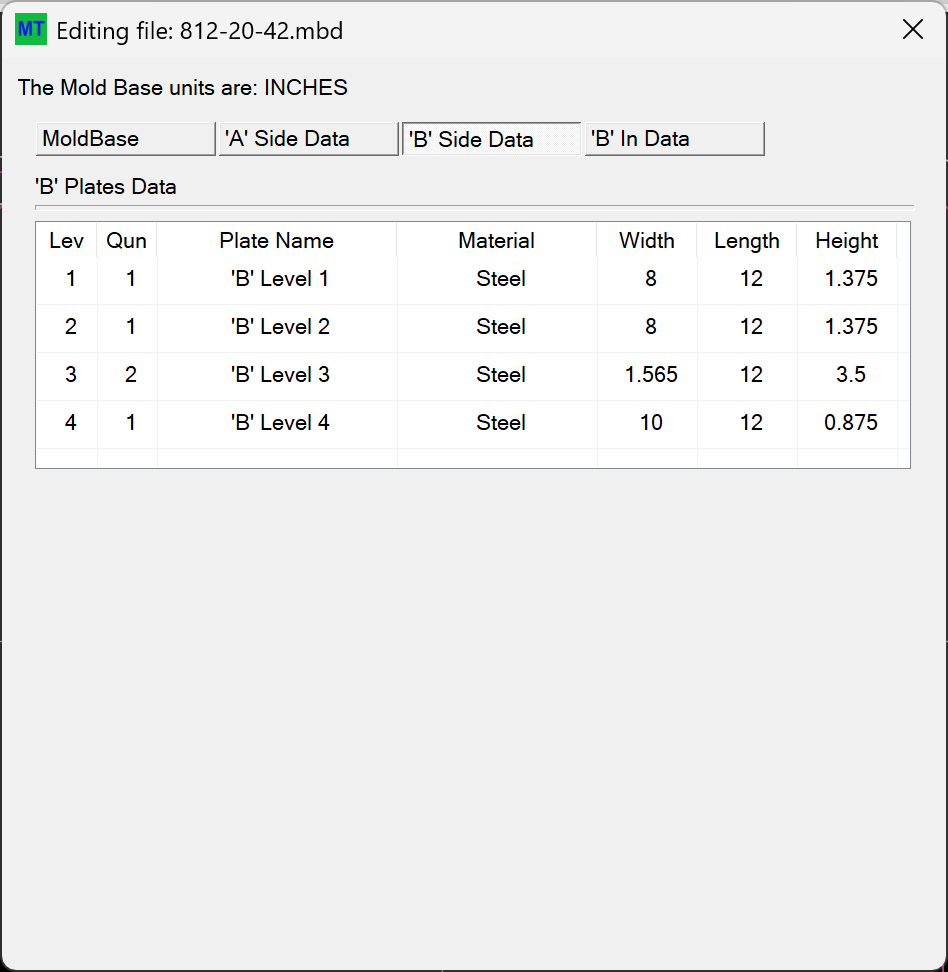

EDIT Mold Base Dialog Side Plates Tab on CUSTOM Mold Bases

A screenshot of a computer

AI-generated content may be incorrect.

Plates Data

Name, Material and Height are freely editable for every plate

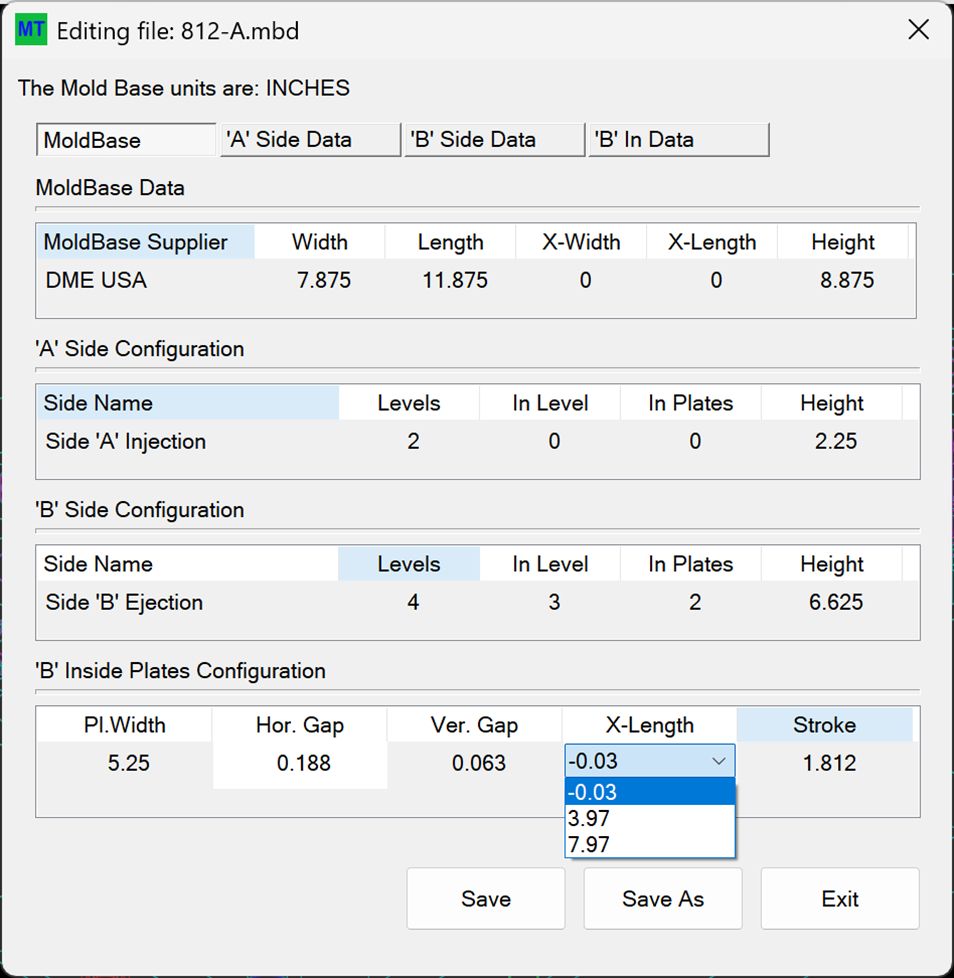

EDIT Mold Base Dialog on LIBRARY Mold Bases

A screenshot of a computer

AI-generated content may be incorrect.

Editable data on a library mold base configuration will show as a drop-down list.

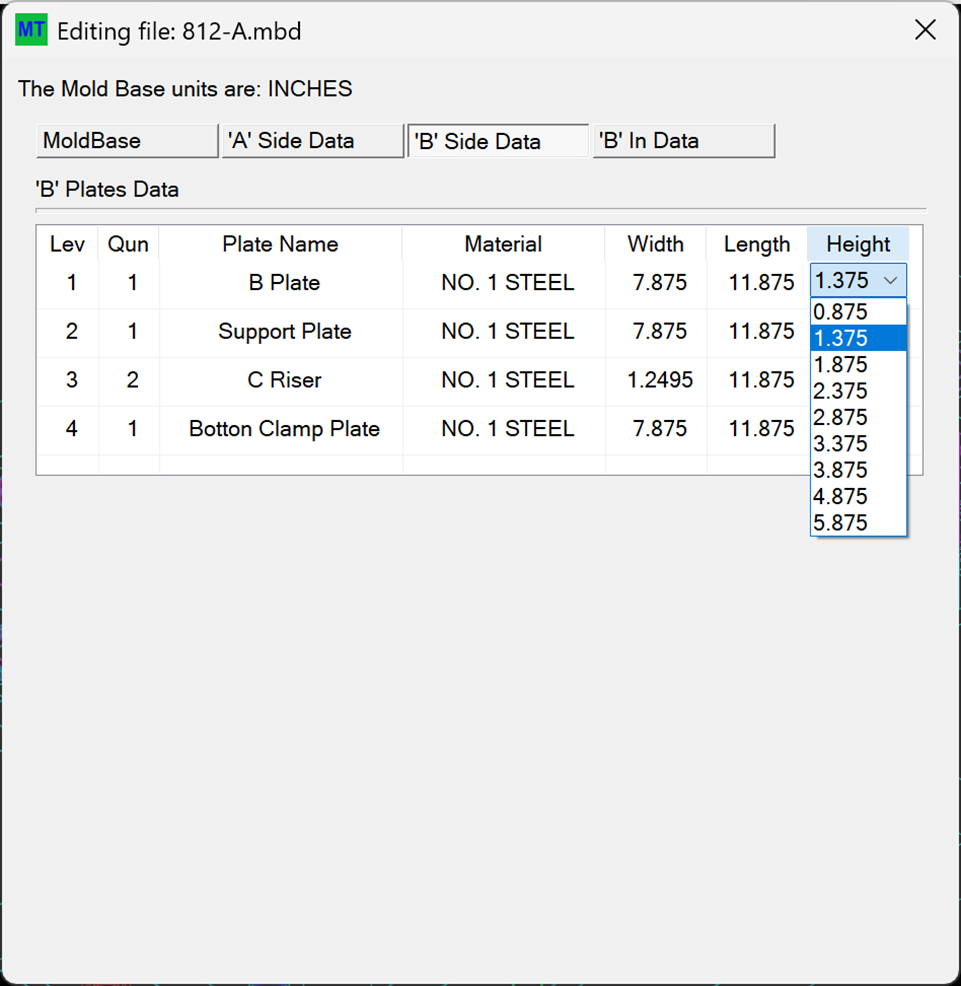

EDIT Mold Base Dialog Side Plates Tab on LIBRARY Mold Bases

A screenshot of a computer

AI-generated content may be incorrect.

Editable data, as Material and Heigh for library mold bases plates will show as a drop-down list

EDIT Mold Base SAVE for custom mold bases

When ‘Save As’ or ‘Save’ a non-previously saved custom base, is highly recommended to use the saving

name proposed by the program based on dimension and plates configuration.
