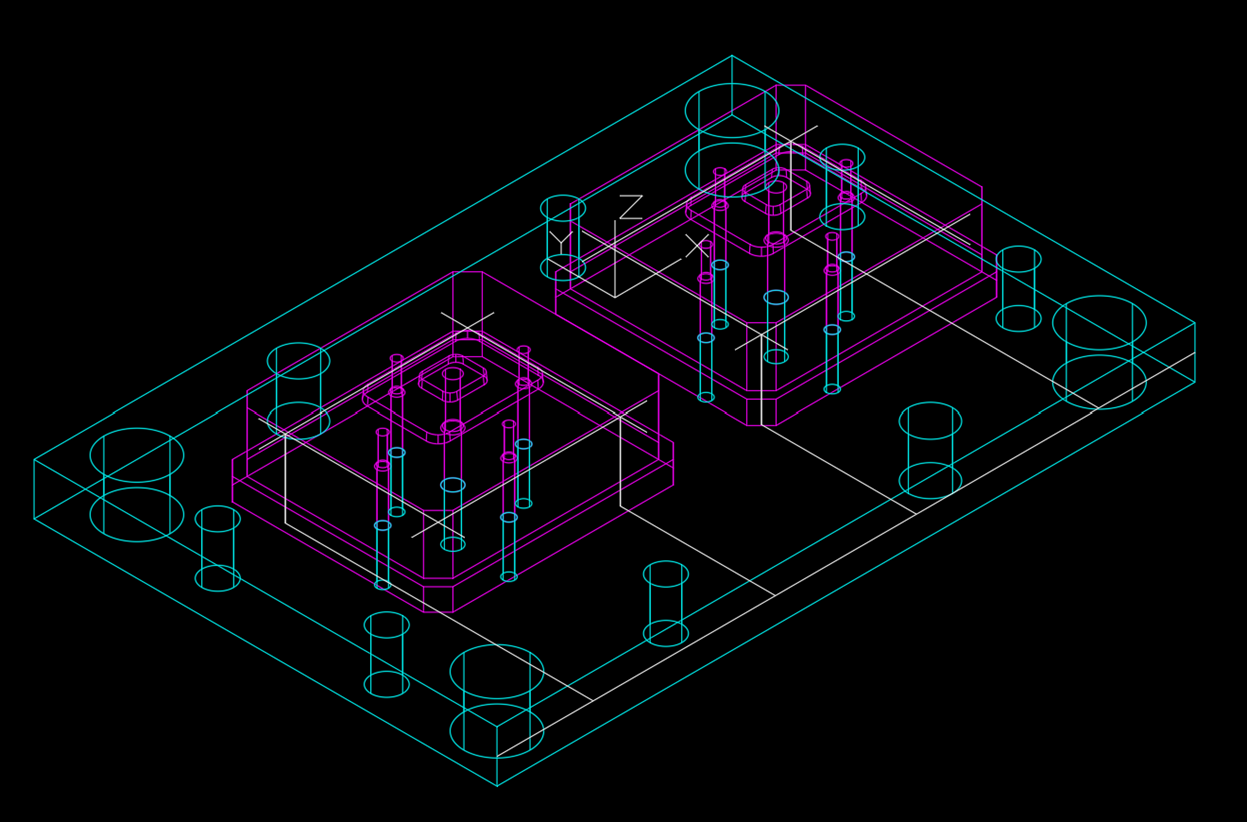

A blueprint of a building

AI-generated content may be incorrect.



Before calling the function, trace with lines where the WaterLines are going to be drawn.

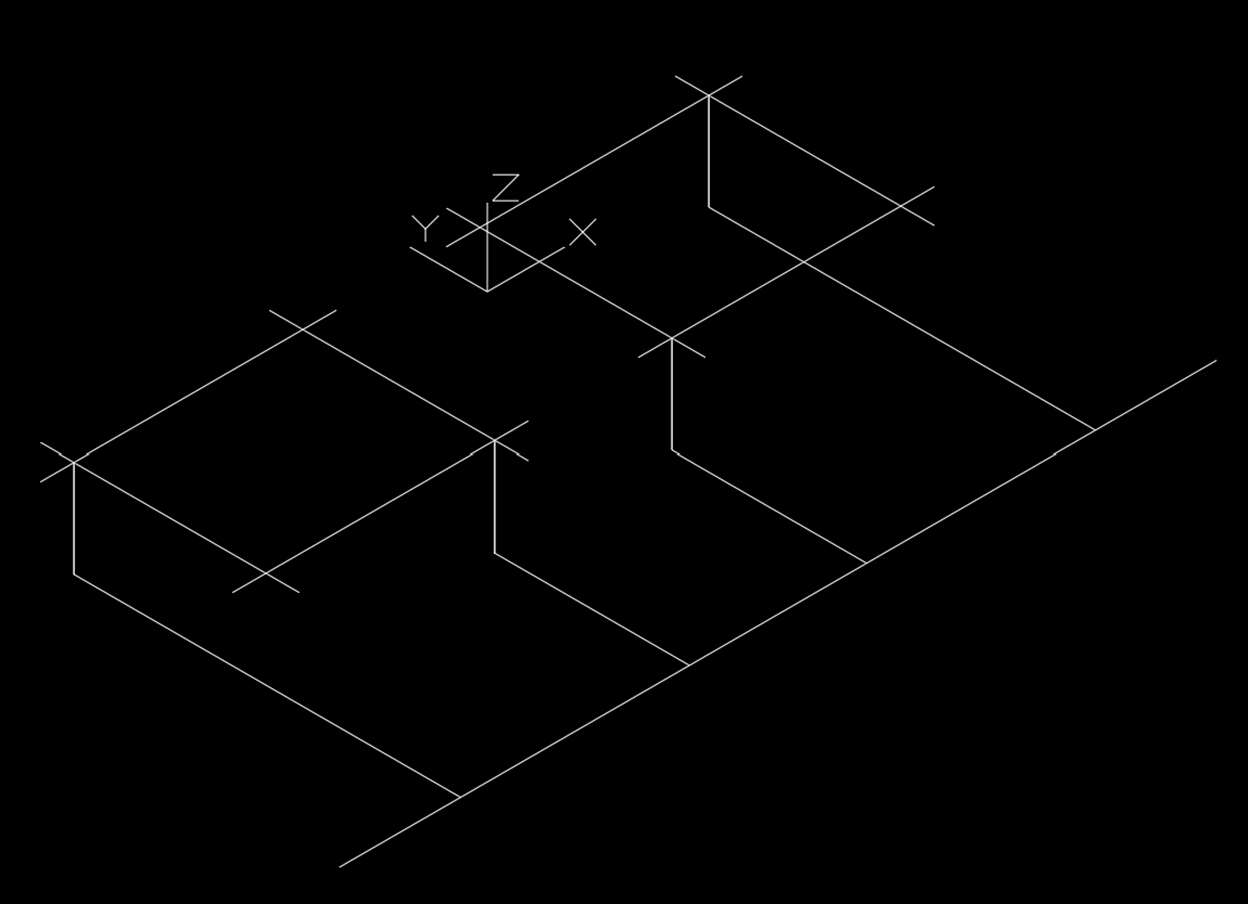

A black background with white lines

AI-generated content may be incorrect.



Example of tracing lines.



A screenshot of a computer

AI-generated content may be incorrect.

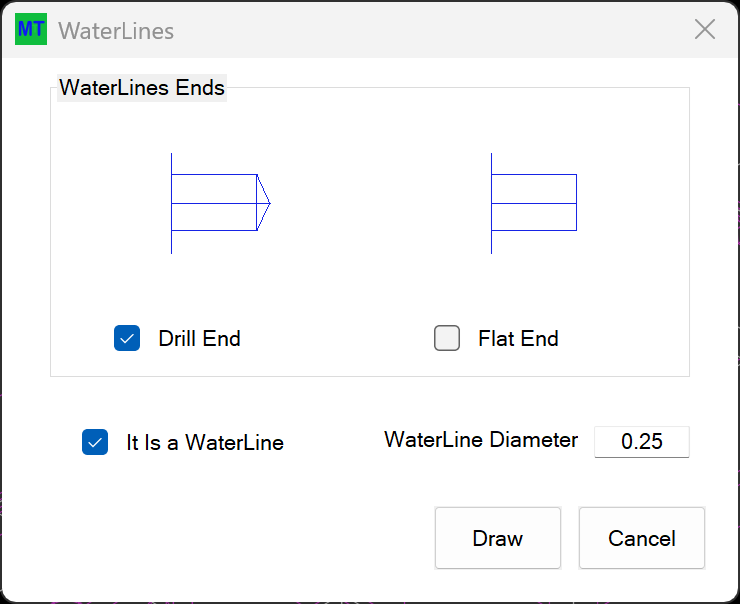

Select WaterLine end.

Check It Is a WaterLine if you want to keep a copy of the subtract tool on MT_Waterlines layer.

Enter WaterLine Diameter.

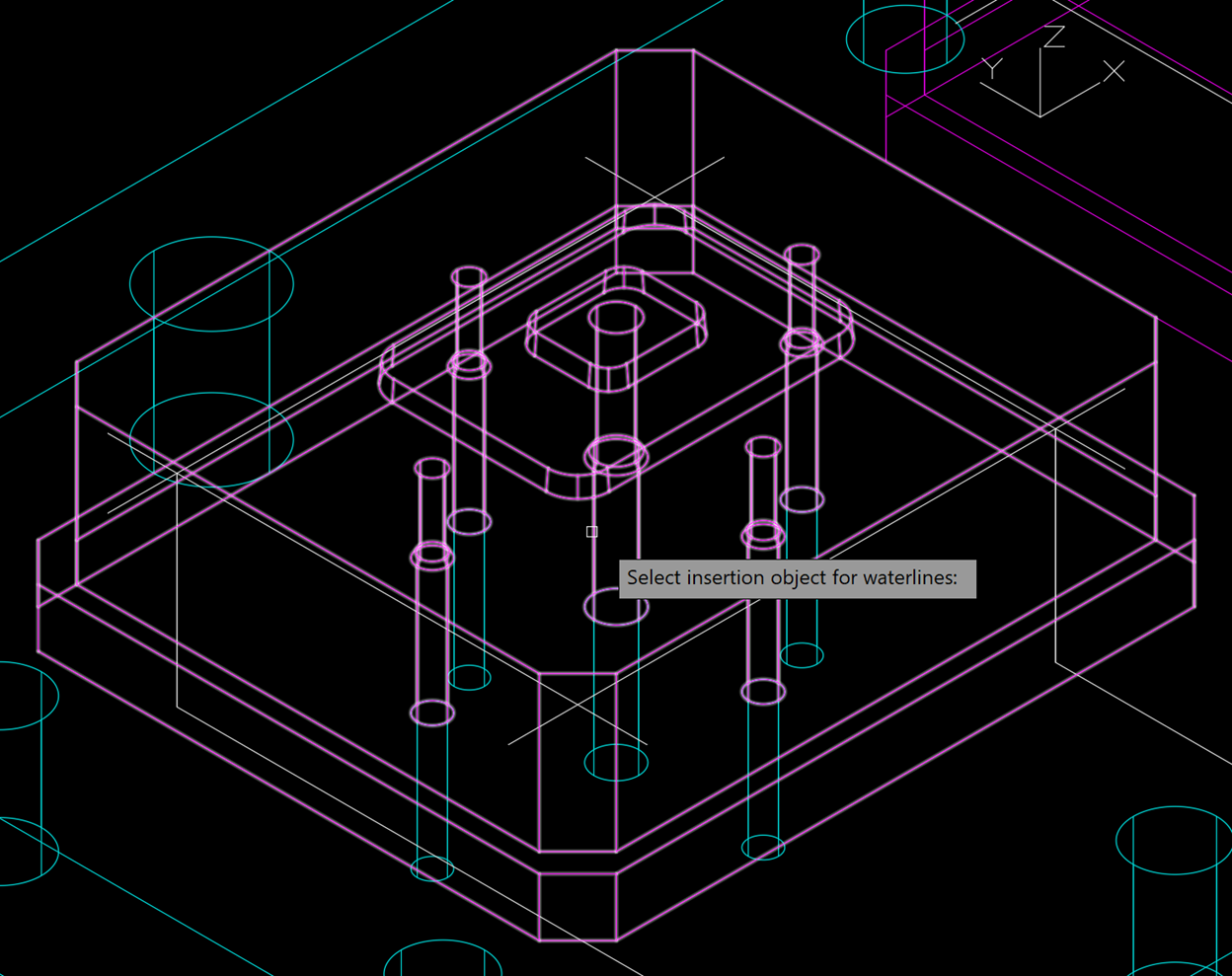

A drawing of a square object

AI-generated content may be incorrect.



Select object where WaterLine will be inserted then select the lines for holes to be drawn.

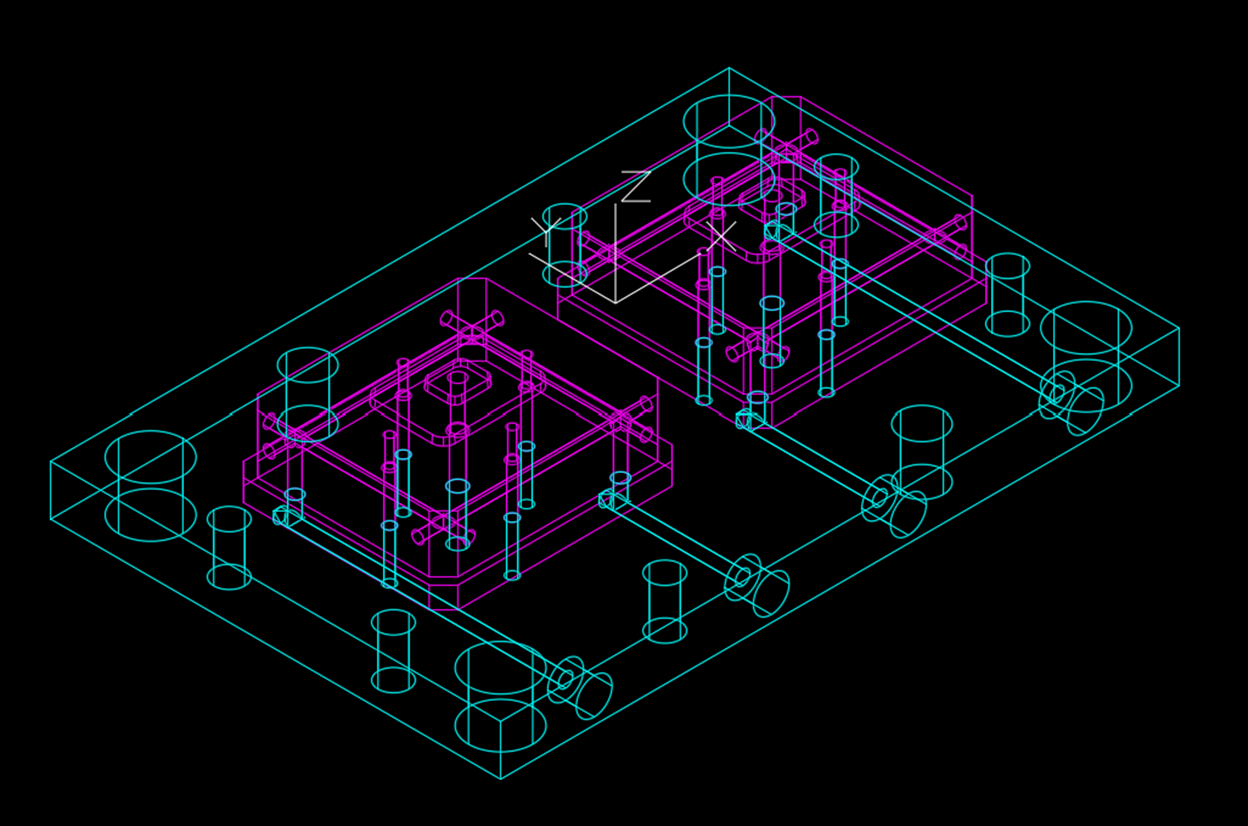

A blueprint of a machine
